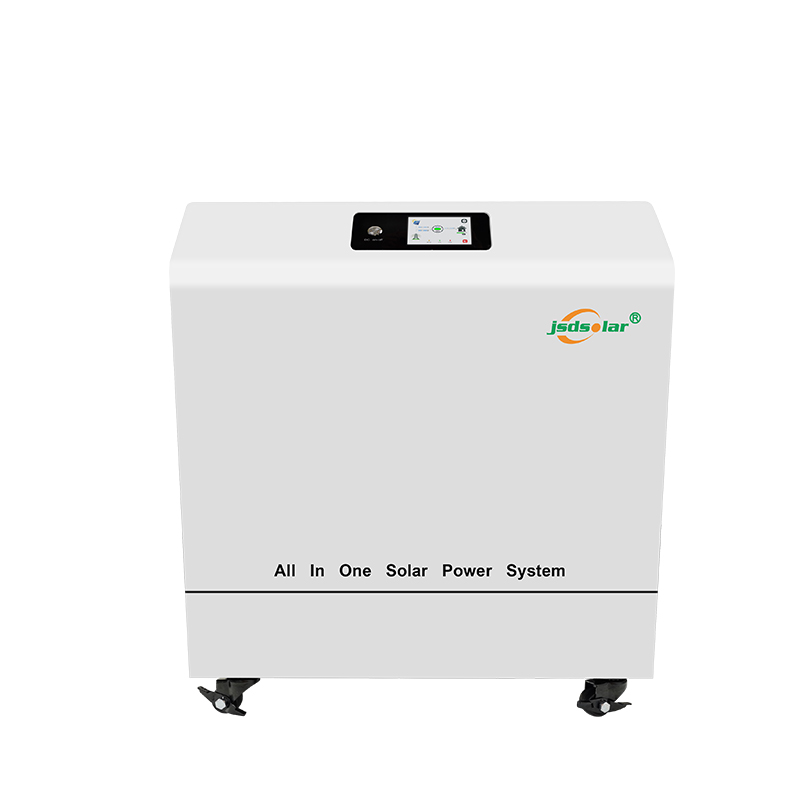

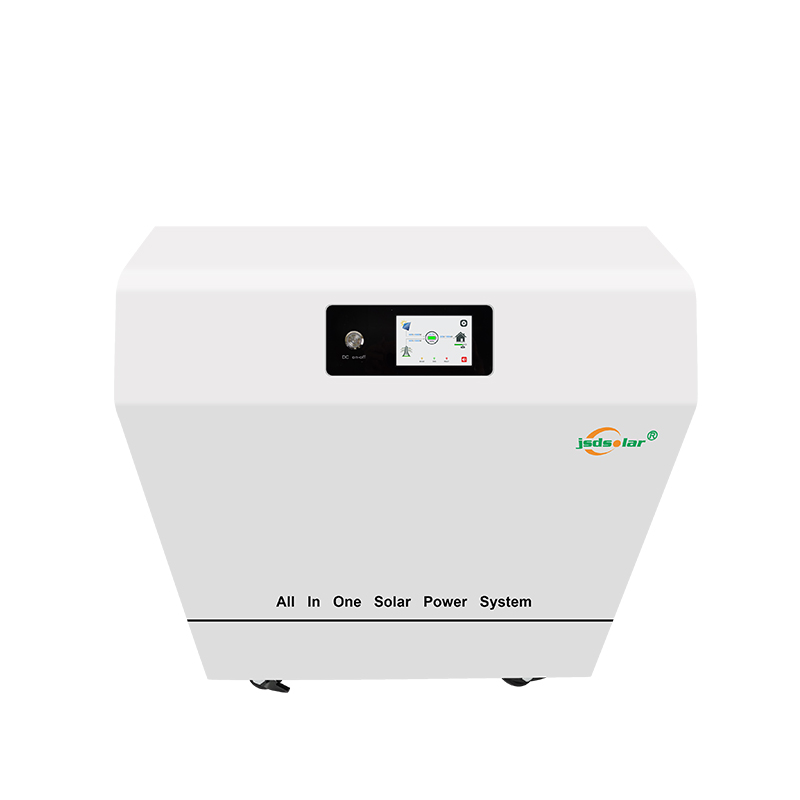

All In One 5KW Solar Power Home System

All in one solar power system equips built-in 5KW 80A solar inverter and 51.2V 5KWH LiFePO4 battery, 5KW integrated solar power system achieves plug and play operation for terminal user, standard MC4 connector, AC output sockets saves a lot installation job for a solar power system, it is able to be solar system distribution first choice.

Request a Quote
  • Colorful display interface
  • Touch setting screen
  • All in one design to salve complicate cable connect process
  • Portable handlebars and easy mobility wheels design
  • Charger, discharge, circuit short/open etc, protection
  • High frequency solar inverter
  • MPPT solar charge controller
  • 6000cycles LiFePO4 batteries
  • Double cooling fan to expand the Lifespan
Products name All In One Solar Power Home System
Main Parts solar converter, solar mppt controller, LiFePo4 battery
Products Model JHP5000
Built-in inverter  5000W
Built-in solar charge controller 80A
Mono Solar Panel 3200W to 5000W （recommend）
Built-in Battery 5120WH (100AH 51.2V)
Input PV Input Voltage 120~450V
Maxi Input Power 5000W
Main Power 220V/230VAC (50/60Hz) or 110v/120VAC (50/60Hz)
Output Output Voltage 220/230VAC
Output Frequency 50/60Hz
Maxi Output Power 5000W
Output Waveform Pure Sine Wave
DC Output Port USB outputs *2 , 12VDC outputs*2
Demension 580mm*239mm*670mm
Weight 76KG
